Dell Precision 3560 Workstation

part number:3560
Processor: Intel Core Processor i7-1165G7 4 Core, 12M cache, 2.8 GHz up to 4.7 GHz Turbo, 17.55W
Operating System: Win 10 PRO Preloaded
Memory: 8GB (1 x 8GB) 3200MHz
2 DIMM slots: up to 64GB 3200MHz non ECC
Graphics: T500 2GB GDDR6
Display: 15.6 inch FHD (1920x1080) Wide View Anti-Glare LED-backlit 45% NTSC, 60Hz
Storage 1 slot: 512GB NVMe SSD
Input: Single Pointing backlit
Communication Wired: Integrated Intel I219LM 10 100 1000 Gigabit Ethernet Controller
Wireless LAN & Bluetooth: Intel Wi Fi 6 AX201 2x2 11ax 160MHz + Bluetooth 5.1
Multimedia: Dual integrated high quality speakers and dual integrated noise cancelling digital array microphones
MaxxAudio Pro by Waves: Integrated RGB HD Express Sign In Camera I O Ports and Connectors Thunderbolt Type C, 2 x USB 2 Gen 1 (1x power enabled), 1 x HDMI 2, 1 x RJ-45, 1 x Headset jack, 1 x SD card reader, Fingerprint reader
Dimensions & Weight: Starting Weight: 3.5 lb. (1.58 kg)
Width: 14.09 358
Depth: 9.13 232
Height: 0.42 10.8
Battery: 4 Cell 63Whr Express Charge
Weight: 3.5lbs, 1.59kg
Power Adaptor: 90W C type Charger
Warranty: 3 year ADP Warranty

Dell Precision 7740 Mobile Workstation

Processor : Intel Xeon E-2286M, 8 Core Xeon, 16M Cache, 2.40GHz up to 5.00GHz Turbo, 45W, vPro
Operating System :Microsoft Windows 10 Pro 64 bit
Chipset : Intel Mobile CM246
Memory : 128 GB, 4x32 GB, DDR4, 2666MHz, ECC SDRAM
Graphics :Intel UHD Graphics P630
Display Options :17.3inch, HD+, 1366 x 768, Anti-Glare, LED Backlight, Nontouch 45% Adobe RGB color gamut
Storage Options : 2.5 in, 500 GB, 7200 RPM, SATA HDD FIPS
Communication Options: Qualcomm QCA61x4A 802.11ac Dual Band (2x2) Wireless Adapter+ Bluetooth 4.2
Multimedia :Dual integrated high quality speakers and
I/O Ports and Connectors : 4 x USB 3.1 Gen 1 ports w/PowerShare, 2 x Thunderbolt 3
Dimensions and Weight : Height .99inch (25.3 mm)
Battery : 4 Cells, 64 Whr Lithium Ion Polymer, ExpressCharge Capable Battery
Power Adaptor :s 240W adapter, 7.4mm barre

Dell Precision 7540 Mobile Workstation

Processor : Intel Xeon E-2286M, 8 Core Xeon, 16M Cache, 2.40GHz up to 5.00GHz Turbo, 45W, vPro
Operating System :Microsoft® Windows 10 Pro 64 bit
Chipset : Intel Mobile CM246
Memory : 128 GB, 4x32 GB, DDR4, 2666MHz, ECC SDRAM
Graphics :Intel UHD Graphics P630
Display Options : 15.6inch, FHD, 1920 x 1080, Anti-Glare, LED Backlight, Non-touch 45% Adobe RGB color gamut
Storage Options : Support for 3 storage devices: Three M.2 PCIe solid state
Storage Options : SATA HDD drive: Dell Fast Response free fall sensor 2.5in, 500 GB, 7200 RPM, SATA HDD FIPS
Wireless :Qualcomm QCA61x4A 802.11ac Dual Band (2x2) Wireless
Multimedia : Dual integrated high quality speakers and
I/O Ports and Connectors :3 x USB 3.1 Gen 1 ports w/PowerShare, 2 x Thunderbolt 3
Dimensions and Weight: Width X = 13.29” (337.6mm)
Battery : 4 Cells, 64 Whr Lithium Ion Polymer, ExpressCharge
Power Adaptor : 180W adapter, 7.4mm barrel

Dell Precision 5530 2 in 1 Mobile Workstation

Processor :Intel 8th Generation Processors
Operating System :Windows 10 Home 64
Chipset : Intel HM175 Chipset
Memory : 8GB-16GB Dual Channel DDR4 at 2400MHz (On Board); 32GB post RTS
Graphics : Radeon Pro WX Vega M GL graphics with 4GB HBM2 RAM
Display Options : 15.6-inch UltraSharp 4K Ultra HD (3840x21600) InfinityEdge touch display; 100% Adobe RGB (min)
Storage Options : 128GB, 256GB, 512GB PCIe NVMe, up to 2TB PCIe NVMe SSD
Wireless LAN: Killer 1435 802.11ac [2x2] + Bluetooth 4.1
Multimedia : Stereo speakers professionally tuned with Waves MaxxAudio Pro; 1W x 2 = 2W total Widescreen
I/O Ports and Connectors : 2x Thunderbolt 3 with PowerShare, DC-In & DisplayPort
Security : Trusted Platform Module (TPM) 2.0
Height: 0.36-0.63inch (9 -16 mm)
Width: 13.9inch (354mm)
Depth: 9.2inch (235mm)
Starting weight: 4.36 lbs* (2 kg*)
Battery : 75WHr battery (built-in)
Power Adaptor : 130W AC adapter via USB-C

Dell Precision 3540 Mobile Workstation

Processor : Intel Core i5-8265U Processor, 4 Core, 6MB Cache, 1.6GHz, 3.9Ghz Turbo, 15W
Operating System : Windows 10 Home 64
Memory : 2 DIMM slots - up to 32GB 2400MHz non-ECC
Graphics : Integrated Intel® UHD 620 Graphics
memory: Display Options : 15.6inch HD TN (1366x768) Anti-Glare LED-backlit (45% TBD color gamut)
Storage Options : 1 slot: 1x 2.5”HDD or M.2 SATA / PCIe
Input : Single Pointing standard
Wired: Integrated Intel I219LM 10/100/1000 Gigabit
Wireless LAN & Bluetooth: Qualcomm QCA61x4A 802.11ac Dual Band (2x2)
Multimedia : Dual integrated high quality speakers and dual
I/O Ports and Connectors : 1x Thunderbolt Type C, 3x USB 3.1 Gen 1 (1x power
Security : Intel Platform Trust Technology, Trusted Platform
Width: 14.14inch/359.1 mm x Depth: 9.30”/236.2 mm x Height: 0.80”/20.35 mm
Battery : 3 Cell 42Whr ExpressChargeTM Capable Battery
Weight : Starting at 4.04lbs
Power Adaptor : 65W and 90W 7mm-barrel AC adapters. Optional

Dell Precision 5720 32 GB RAM All in One Workstation

Processor : Intel Xeon Processor E3-1200 v6 Family 7th generation Intel Core i7, i5
Brand Name: Dell
Series: Precision
Item model number: SBR08
Hardware Platform: PC
Operating System: Windows 10 Professional
Item Weight: 37.3 pounds
Product Dimensions: 24.6 x 3.1 x 17.1 inches
Item Dimensions L x W x H: 24.6 x 3.1 x 17.1 inches
Processor Brand: Intel
Processor Count: 1
Computer Memory Type: DDR4 SDRAM
Flash Memory Size: 1000.0
Hard Drive Rotational Speed: 7200 RPM
Optical Drive Type: DVD+RW
Screen Size: 27 inches
Max Screen Resolution: 3840x2160 pixels
RAM: 32 GB DDR4
Memory Speed: 2400 MHz
Hard Drive: 1000 GB Hybrid Drive
Graphics Coprocessor: AMD Radeon Pro WX 7100
Chipset Brand: AMD
Card Description: Integrated
Graphics Card Ram Size: 2 GB
Wireless Type: 802.11ac
Number of USB 2.0 Ports: 2
Number of USB 3.0 Ports: 5

Dell Precision 3431 Desktop Workstation

Brand Name: Dell
Processor : 9th generation Intel Core i9, i7, i5, i3, and Pentium
RAM: SDRAM DDR4
Memory Speed: 2666 MHz
Hard Drive: mechanical_hard_drive
Graphics Coprocessor: Integrated Video Card
Chipset Brand: Intel
Number of USB 2.0 Ports: 4
Series: T3430
Item model number: SBR22
Operating System: Windows 10 Professional
Item Weight: 14.4 pounds
Product Dimensions: 11.5 x 3.7 x 11.4 inches
Item Dimensions L x W x H: 11.5 x 3.7 x 11.4 inches
Color: Black
Processor Count: 1
Flash Memory Size: 16 GB
Hard Drive Rotational Speed: 7200.00
Optical Drive Type: DVD±RW
Power Source: AC

Dell Precision 3430 Small Form Factor Workstation

Processor: 8032
RAM: SDRAM DDR4
Memory Speed: 2666 MHz
Hard Drive: mechanical hard drive
Graphics Coprocessor: Integrated Video Card
Chipset Brand: Intel
Number of USB 2.0 Ports: 4
Brand Name: Dell
Series: T3430
Item model number: SBR22
Operating System: Windows 10 Professional
Item Weight: 14.4 pounds
Product Dimensions: 11.5 x 3.7 x 11.4 inches
Item Dimensions L x W x H: 11.5 x 3.7 x 11.4 inches
Color: Black
Processor Count: 1
Flash Memory Size: 16 GB
Hard Drive Rotational Speed: 7200.00
Optical Drive Type: DVD±RW
Power Source: AC

New Precision 3630 Tower workstation

Available with Windows 10 Pro - for a smooth, versatile PC experience.
Professional performance
Blaze past limits: Power through intensive tasks thanks to the latest 8th generation Intel Core and Xeon Processors and faster memory speeds of up to 2666MHz 64GB.
Expandable and flexible: Scalable storage featuring SATA, SAS and PCIe NVMe SSDs can be configured for up to 14TB delivering top performance for complex projects. Plus, Intel® Optane™ Memory massively boosts your system’s responsiveness while keeping high capacity storage costs to a minimum.
Ready for VR
Prepare yourself for impressive VR in the surprisingly affordable Precision 3630 Tower. Next generation AMD Radeon™ Pro and NVIDIA® Quadro® professional graphics with up to 225W of graphics support handles VR content creation with workstation-class performance you can count on.
Prepare yourself for impressive VR in the surprisingly affordable Precision 3630 Tower. Next generation AMD Radeon™ Pro and NVIDIA® Quadro® professional graphics with up to 225W of graphics support handles VR content creation with workstation-class performance you can count on.
Reliability when you need it most
Work without fail: When there’s no margin for error, Dell Reliable Memory Technology (RMT) Pro protects your work from potential crashes. Dell’s exclusive, RMT Pro works in conjunction with ECC memory to detect and quarantine memory errors in real time.
Independent Software Vendor (ISV) certification: Precision Workstations are tested to ensure the high
Ready for VR
Prepare yourself for impressive VR in the surprisingly affordable Precision 3630 Tower. Next generation AMD Radeon™ Pro and NVIDIA® Quadro® professional graphics with up to 225W of graphics support handles VR content creation with workstation-class performance you can count on.
Reliability when you need it most
Work without fail: When there’s no margin for error, Dell Reliable Memory Technology (RMT) Pro protects your work from potential crashes. Dell’s exclusive, RMT Pro works in conjunction with ECC memory to detect and quarantine memory errors in real time.
Independent Software Vendor (ISV) certification: Precision Workstations are tested to ensure the high-performance applications you rely on every day run smoothly. Dell ISV-certifications cover the most popular independent software applications

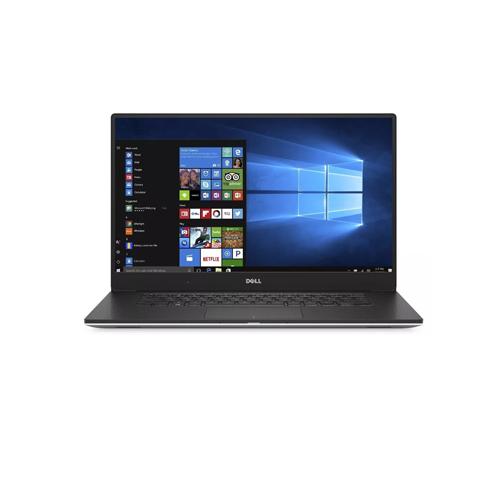

Dell Precision 5530 workstion

Processor:Intel Core i5-8300H, Quad Core 2.30GHz, 4.00GHz Turbo
Memory: 8MB 45W memory
Operating system : Windows 10 Pro 64-bit French
Hard drive:Intel Optane Memory 32GB PCIe NVMe SSD
Display: 15.6inch UltraSharp FHD IGZO4, 1920x1080, AG, NT,
Graphics :NVIDIA Quadro professional graphics

Dell Precision 7920 Tower workstation

Processor :
One or two Intel Xeon processor Scalable family CPUs with up to 28 cores per processor and Intel Advanced Vector Extensions, Intel Trusted Execution Technology, Intel AES New instructions, Optimized Intel Turbo Boost and optional Intel vPro technology
Operating System (Dell recommends Windows 10 Pro.) :
Windows 10 Pro (64 bit)
Enterprise Linux 7.3
Ubuntu Linux 16.04
NeoKylin 6.0 SP3 (China only)
Chipset :
Intel C621 (Lewisburg)
Memory :
Six channel memory up to 1.5TB 2667MHz DDR4 ECC memory with dual CPUs, up to 3TB with select CPU SKUs
24 DIMM Slots (12 DIMMs per CPU). Note: memory speed is dependent on specific Intel Xeon Processor Scalable processor installed
Video Card :
Support for 4 PCI Express x16 Gen 3 graphics cards, 1 - up to 750W with maximum of 3 x 250W double width graphics cards in 3 slots (dual CPU configuration) and up to 2 x 375W cards 220VAC input supply recommended for 750W configurations and some restrictions apply
High end 3D cards:
Radeon Pro WX 9100
Radeon Pro SSG (future)
NVIDIA Quadro GP100
NVIDIA Quadro P6000
NVIDIA Quadro P5000
Mid-range 3D cards:
Radeon Pro WX 7100
Radeon Pro WX 5100
Radeon Pro WX 4100
NVIDIA Quadro P4000
NVIDIA Quadro P2000
Entry 3D cards:
Radeon Pro WX 3100
Radeon Pro WX 2100
NVIDIA Quadro P1000
NVIDIA Quadro P600
NVIDIA Quadro P400
Professional 2D cards:
NVIDIA NVS 310
Hard Drive :
Front accessible FlexBays support up to 4 x 2.5”/3.5” SATA HDD/SSDs and up to 8 drives with rear FlexBays populated with integrated Intel SATA controller.
Up to 10 x 2.5”/3.5” SATA/SAS drives requires the Broadcom MegaRAID 9460-16i controller.
Up to 4 front accessible (hot plug) M.2 NVMe PCIe SSDs in FlexBays on enabled PCIe chassis with integrated Intel controller (>2 drives requires dual CPUs. NVMe RAID 0,1 option (Intel RSTe vROC).
Dell M.2 carrier with PCIe SSD for PCIe FlexBay available as customer kit.
Up to 8 x M.2 NVMe PCIe SSDs via 2 x Dell Ultra Speed Drive Quad x16 cards (maximum requires dual CPUs), NVMe RAID 0,1,10 option on 1st card (Intel RSTe vROC).
M.2 NVMe PCIe SSDs
Up to 8* x 1TB drives on 2 Dell Precision Ultra-Speed Drive Quad x16 cards. *Requires dual CPU config.
Front FlexBay M.2 NVMe PCIe SSDs
Up to 4* x 1TB drives, 2 drives per CPU. *Requires dual CPU config.
2.5” SATA SSD
Up to 10 x 1TB drives
2.5” SAS SSD
Up to 10 x 800GB drives
3.5” SAS 7200 RPM 12Gb/s
Up to 10 x 4TB
2.5” SAS 10K RPM 12Gb/s
Up to 10 x 1.8TB
2.5” SAS 15K RPM 12Gb/sUp to 10 x 900GB 2.5” Self Encrypting Drives512GB 2.5” SED (OPAL/ FIPS (140-2) HDDM.2 PCIe SED SSD512GB and 1TB
Chassis :
Bays: (4) FlexBays and (1) 5.25” FlexBay supporting up to 10 x 3.5” or 2.5” drives (with MegaRAID 9460i-16 controller)
(1) Slimline optical bay option adjacent to 5.25” bay; Available 2nd 5.25” bay – consumes/converts 2 FlexBays, (1) SD slot UHS ll Class 3 with read only support (SW enabled). Available PCIe chassis with PCIe FlexBays supporting M.2 NVMe PCIe SSDs and future U.2 NVMe PCIe SSDs. PCIe FlexBay customer kit available
Ports Front :
2 USB 3.1 Type A
2 USB 3.1 Type C
1 Universal Audio Jack
Up to 4 PCIe slots in PCIe enabled chassis for M.2 and U.2 (future) PCIe SSDs
Internal :
1 USB 2.0
1 USB 2.0 header. (requires 3rd party splitter cable to support 2 x USB 2.0 Type A ports)
8 SATA 6Gb/s plus 1 SATA for optical
Rear :
6 USB 3.1 Type A
1 Serial
2 RJ45 Network
2 PS2
1 Audio Line out
1 Audio Line in/Microphone
Security :
Trusted Platform Module (TPM 2.0); Optional CAC/PIV card reader for slimline bay, chassis Intrusion switch; Setup/BIOS Password; I/O Interface Security; Kensington lock slot, Padlock ring, lockable power supply; Optional hard drive locking sleds (key lock), Dell Data Guardian, Dell Endpoint Security Suite Enterprise.
Dimensions :
Height: 433 mm (17.05) X Width: 218 mm (8.58) X Depth: 566 mm (22.28) Starting weight: 20.4kg (45.0 lb)
Slots :
All slots PCIe Gen 3:
2 PCIe x16
2 Additional x16 slots with 2nd CPU
1 PCIe x8 open ended
1 x16 wired as x 4
1 x16 wired as x1

Dell Precision 7820 Tower workstation

Processor :
One or two Intel Xeon processor Scalable family CPUs with up to 28 cores per processor and Intel Advanced Vector Extensions, Intel Trusted Execution Technology, Intel AES New instructions, Optimized Intel Turbo Boost and optional Intel vPro technology
Operating System (Dell recommends Windows 10 Pro.) :
Windows 10 Pro (64 bit)
Red Hat Enterprise Linux 7.3
Ubuntu Linux 16.04
NeoKylin 6.0 SP3 (China only)
Chipset :
Intel C621 (Lewisburg)
Memory :
Six channel memory up to 384GB 2667MHz DDR4 ECC memory with dual CPUs, 12 DIMM Slots(6 DIMMs per CPU).
Note: Memory speed is dependent on specific Intel Xeon Processor Scalable Family processor installed.
Video Card :
Support for 2 PCI Express x16 Gen 3 graphics cards1 - up to 500W with maximum of 2 x 250W double width graphics cards on single CPU configurations. Up to 2 x 150W single width graphics cards on dual CPU configurations.
High end 3D cards:
Radeon Pro WX 9100
Radeon Pro SSG (future)
NVIDIA Quadro GP100
NVIDIA Quadro P6000
NVIDIA Quadro P5000
Mid-range 3D cards:
Radeon Pro WX 7100
Radeon Pro WX 5100
Radeon Pro WX 4100
NVIDIA Quadro P4000
NVIDIA Quadro P2000
Entry 3D cards:
Radeon Pro WX 3100
Radeon Pro WX 2100
NVIDIA Quadro P1000
NVIDIA Quadro P600
NVIDIA Quadro P400
Professional 2D cards:
NVIDIA NVS 310
NVIDIA NVS 315
Hard Drive :
Front accessible FlexBays support up to 4 x 2.5”/3.5” SATA HDD/SSDs and up to 6 x 2.5” and 5 x 3.5” drives with 5.25” bay populated.
Up to 2 front accessible (hot plug) M.2 NVMe PCIe SSDs are supported in FlexBays on enabled PCIe chassis with integrated Intel controller.
NVMe RAID 0,1 option (Intel RSTe vROC). Dell M.2 carrier with PCIe SSD for PCIe FlexBay available
as customer kit.
Up to 4 x M.2 NVMe PCIe SSDs via 1 x Dell Ultra-Speed Drive Quad x16 card. NVMe RAID 0,1,10 option (Intel RSTe vROC)
M.2 NVMe PCIe SSDs
Up to 4 x 1TB drives on 1 Dell Precision Ultra-Speed Drive Quad x16 cards.
Front FlexBay M.2 NVMe PCIe SSDs
Up to 2 x 1TB drives
2.5” SATA SSD
Up to 6 x 1TB drives
2.5” SAS SSD
Up to 6 x 800GB drives
3.5” SAS 7200 RPM 12Gb/s
Up to 5 x 4TB
2.5” SAS 10K RPM 12Gb/s
Up to 6 x 1.8TB
2.5” SAS 15K RPM 12Gb/s
Up to 6 x 900GB
2.5” Self Encrypting Drives
512GB 2.5” SED (OPAL/ FIPS (140-2) HDD
M.2 PCIe SED SSD
512GB and 1TB Intel
Communications :
Integrated: Intel i219 Gigabit Ethernet controllers with Intel Remote Wake UP, PXE and Jumboframes support
Optional: Intel i210 10/100/1000 single port PCIe (Gen 3 x1) gigabit network card, Intel X550 T2 10GbE dual port PCIe (Gen 3 x4) network card, Aquantia AQN 108 2.5Gbit/5Gbe single port PCIe (Gen3 x4) network card
Chassis :
Bays: (2) FlexBays and (1) 5.25” FlexBay (can support 1 x 3.5” or 2 x 2.5” HDD/SSD drives as factory option or customer kit)
(1) Slimline optical bay; (1) SD slot UHS ll Class 3 with read only support (SW enabled).Available PCIe chassis with PCIe FlexBays supporting M.2 NVMe PCIe SSDs and future U.2 NVMe PCIe SSDs. PCIe FlexBay customer kit available
Ports Front :
2 USB 3.1 Type A
2 USB 3.1 Type C
1 Universal Audio Jack
Up to 2 (future 4) PCIe slots in PCIe enabled chassis for M.2 and U.2 (future) PCIe SSDs
Internal :
1 USB 2.0
1 USB 2.0 header. (requires 3rd party splitter cable to support 2 USB 2.0 Type A ports)
8 SATA 6Gb/s plus 1 SATA for optical
Rear :
6 USB 3.1 Type A
1 Serial
1 RJ45 Network
2 PS2
1 Audio Line out
1 Audio Line in/Microphone
Security :
Trusted Platform Module (TPM 2.0); Optional CAC/PIV card reader for slimline bay, chassis Intrusion switch; Setup/BIOS Password; I/O Interface Security; Kensington lock slot, Padlock ring, lockable power supply; Optional hard drive locking sleds (key lock), Dell Data Guardian, Dell Endpoint Security Suite Enterprise
Dimensions ;
Height: 417.9 mm (16.45) X Width: 176.5 mm (6.95) X Depth: 518.3 mm (20.41). Optional (19) rackmount rail kit.
Starting weight: 35.1 lb (15.9kg)
Slots :
All slots PCIe Gen 3
2 PCIe x16
1 PCIe x16 wired as x8
1 PCie x16 wired as x4
1 PCIe x16 wired as x1
1 PCI 32/33

Dell Precision 5820 Tower Workstation

Processor :
Intel Xeon Processor W Family CPUs (Skylake W) with up to 10 cores per processor and Intel Advanced Vector Extensions, Intel Trusted Execution Technology, Intel AES New instructions, Optimized Intel Turbo Boost and optional Intel vPro technology
Operating System (Dell recommends Windows 10 Pro.) :
Windows 10 Pro for Workstations (upto 4 Cores Plus) English
Windows 10 Pro for Workstations (4 Cores Plus) English
Windows 7 Professional (includes Windows 10 Pro for Workstations License, up to 4 Cores) English
Windows 7 Professional (includes Windows 10 Pro for Workstations License, up to 4 Cores) English
Windows 7 Professional (VLA includes Windows 10 Pro for Workstations, upto 4 Cores) English
Windows 7 Professional (VLA includes Windows 10 Pro for Workstations, 4 Cores Plus) English
Red Hat Enterprise Linux WS v7.3 with 5 YR RHN
Red Hat Enterprise Linux WS v7.3 with 3 YR RHN
Red Hat Enterprise Linux WS v7.3 with 1 YR RHN
Ubuntu Linux 16.04,FI,WW
Chipset :
Intel C422 (Kaby Lake W)
Memory :
Four channel memory up to 256GB 2666MHz DDR4 ECC memory. 8 DIMM slots
Note: Memory speed is dependent on specific Intel Xeon Processor W Family processor installed
Video Card :
Support for 2 PCI Express x16 Gen 3 graphics card2 - up to 600W with maximum of up to 2 x 300W double width graphics cards.
High end 3D cards:
Radeon Pro WX 9100
Radeon Pro SSG (future)
NVIDIA Quadro GP100
NVIDIA Quadro P6000
NVIDIA Quadro P5000
Mid-range 3D cards:
Radeon Pro WX 7100
Radeon Pro WX 5100
Radeon Pro WX 4100
NVIDIA Quadro P4000
NVIDIA Quadro P2000
Entry 3D cards:
Radeon Pro WX 3100
Radeon Pro WX 2100
NVIDIA Quadro P1000
NVIDIA Quadro P600
NVIDIA Quadro P400
Professional 2D cards:
NVIDIA NVS 310
NVIDIA NVS 315
Hard Drive :
Front accessible FlexBays support up to 4 x 2.5”/3.5” SATA HDD/SSDs and up to 6 x 2.5” and 5 x 3.5” drives with 5.25” bay populated.
Up to 2 front accessible (hot plug) M.2 NVMe PCIe SSDs are supported in FlexBays on enabled PCIe chassis with integrated Intel controller.
NVMe RAID 0,1 option (Intel RSTe vROC). Dell M.2 carrier with PCIe SSD for PCIe FlexBay available
as customer kit.
Up to 4 x M.2 NVMe PCIe SSDs via 1 x Dell Ultra-Speed Drive Quad x16 card. NVMe RAID 0,1,10 option (Intel RSTe vROC).
M.2 NVMe PCIe SSDs
Up to 4 x 1TB drives on 1 Dell Precision Ultra-Speed Drive Quad x16 cards.
Front FlexBay M.2 NVMe PCIe SSDs
Up to 2 x 1TB drives
2.5” SATA SSD
Up to 6 x 1TB drives
2.5” SAS SSD
Up to 6 x 800GB drives
3.5” SAS 7200 RPM 12Gb/s
Up to 5 x 4TB
2.5” SAS 10K RPM 12Gb/s
Up to 6 x 1.8TB
2.5” SAS 15K RPM 12Gb/s
Up to 6 x 900GB
2.5” Self Encrypting Drives
512GB 2.5” SED (OPAL/ FIPS (140-2) HDD
M.2 PCIe SED SSD
Communications :
Optional: Intel i210 10/100/1000 single port PCIe (Gen 3 x1) gigabit network card, Intel X550 T2 10GbE dual port PCIe (Gen 3 x4) network card,
Aquantia AQN 108 2.5Gbit/5Gbe single port PCIe (Gen3 x4) network card
Chassis :
Bays: (2) FlexBays and (1) 5.25” FlexBay (can support 1 x 3.5” or 2 x 2.5” HDD/SSD drives as factory option or customer kit)
(1) Slimline optical bay; (1) SD slot UHS ll Class 3 with read only support (SW enabled)
Available PCIe chassis with PCIe FlexBays supporting M.2 NVMe PCIe SSDs and future U.2 NVMe PCIe SSDs. PCIe FlexBay customer kit available.
Ports Front:
2 USB 3.1 Type A
2 USB 3.1 Type C
1 Universal Headphone Jack
Up to 2 (future 4) PCIe slots in PCIe enabled chassis for M.2 and U.2 (future) PCIe SSDs
Internal:
1 USB 2.0
1 USB 2.0 header (requires 3rd party splitter cable to support USB 2.0 Type A ports)
8 SATA 6Gb/s plus 1 SATA for optical
Rear:
6 USB 3.1 Type A
1 Serial
1 RJ45 Network
2 PS2
1 Audio Line out
1 Audio Line in/Microphone
Dimensions :
Height: 417.9 mm (16.45) X Width: 176.5 mm (6.94) X Depth: 518.3 mm (20.40)
Starting weight: 15.4kg (34.0 lbs)
Slots :
All slots PCIe Gen 3
2 PCIe x16
1 PCIe x16 wired as x8
1 PCie x16 wired as x4
1 PCIe x16 wired as x1
1 PCI 32/33
